Model No.: 013.20.1000
Good after-sales service
Long life Turntable Bearing
Professional turntable bearing manufacturer
Product Description Turntable bearing manufacturer in China Wanda Turtable Bearing is composed of two seat rings, which design in compact structure and light weight, steel ball contact with the circular raceway at four points; it can bear the axial force, radial force and the tilting moment at the same time. It can be used for slewing conveyer,welding manipulator,light & medium duty crane,excavator,and other construction machinery. Xuzhou Wanda Turntable Bearing Series:
1. Single-row Four-point Contact Rotary turntable Bearing
2. Single-row Crossed Roller turntable Bearing
3. Double-row Four-point Contact turntable bearing
4. Three-row Roller turntable Bearing
5. Light type Turntable bearing Three types of Turtable Bearing : A. Without Gear Turtable Bearing B. External Gear Turtable Bearing

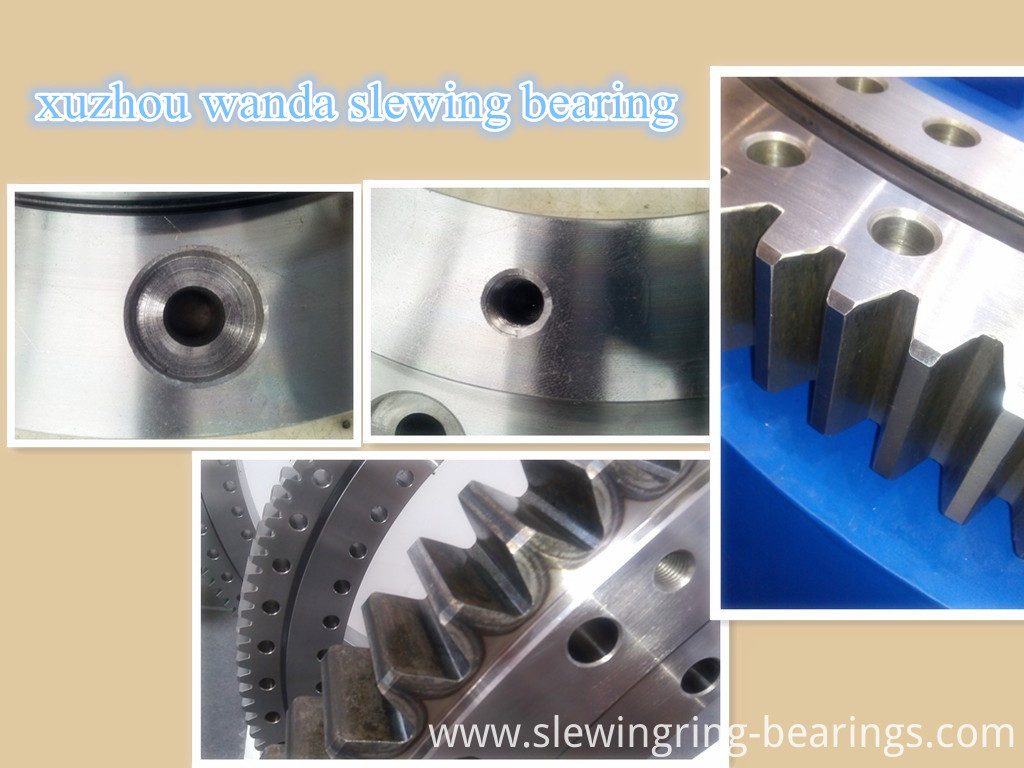

C. Internal Gear Turtable Bearing Our turntable bearing advabtages Turntable bearing detail:

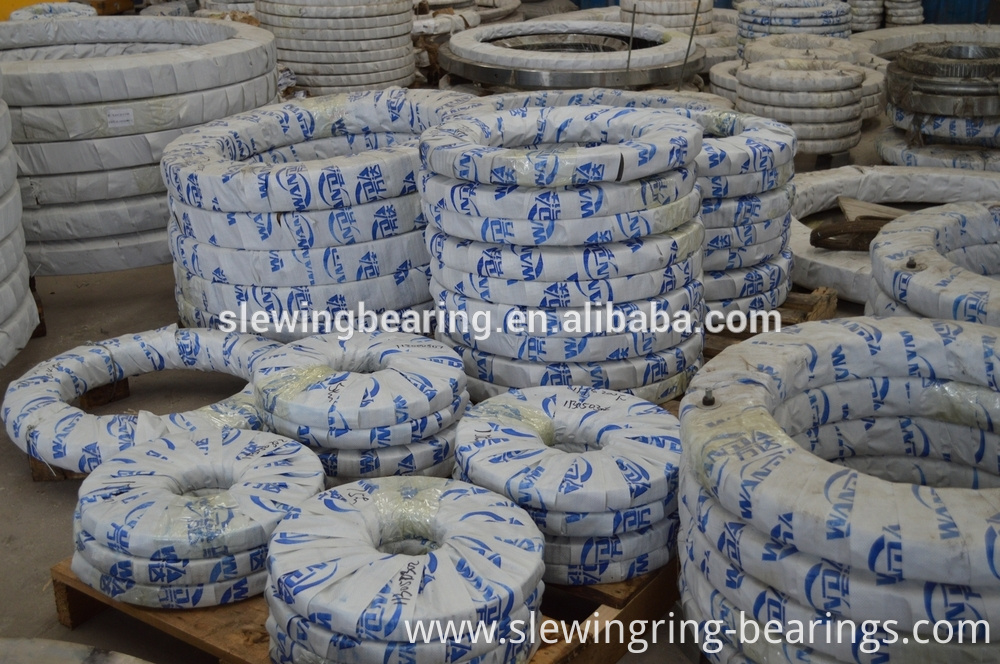

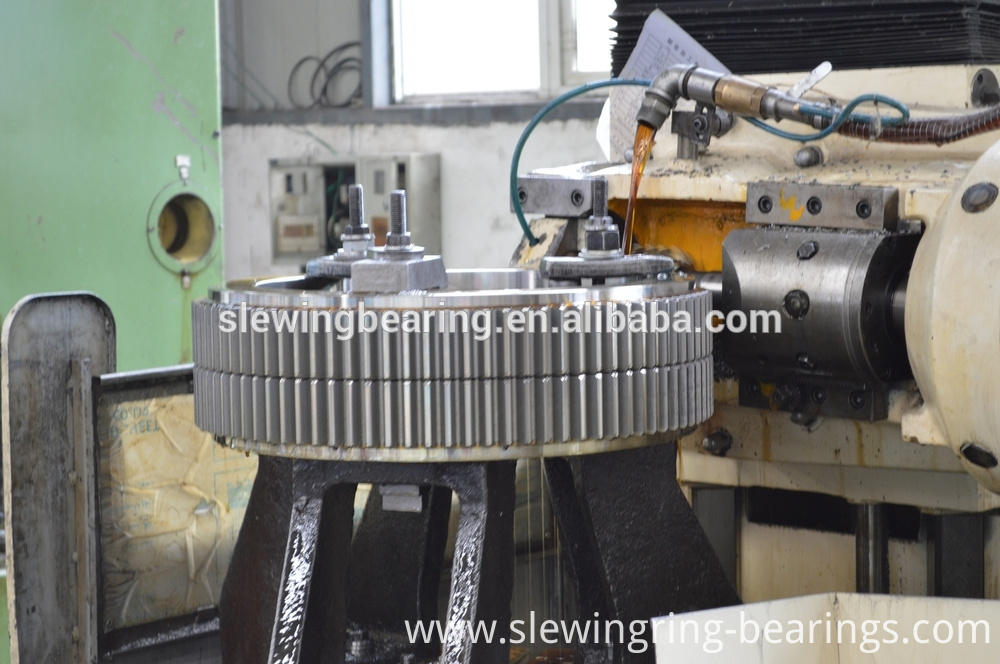

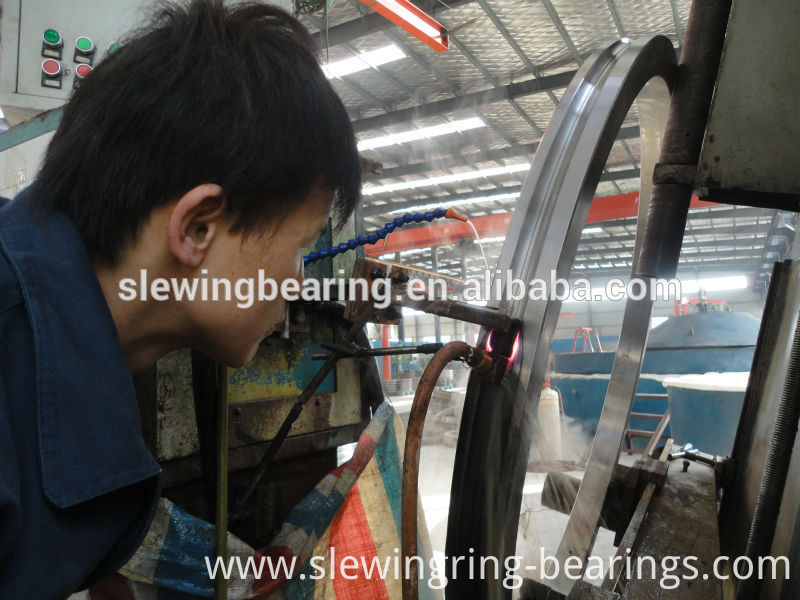

Turntable bearing teeth processing Turntable bearing heart treatment Standard Turntable bearing in stock Our Advantages 1.Fast delivery
2.Good quality and competitive price
3.Trial order accepted
4.ISO certified company
6. Custom-design is available.( non-standard model)
7. We can do replacement Slewing Bearing for differenct type like Rothe Erde,Rollix,INA,SKF,IMO,TG,Kaydon etc. bearing application Single Ball Turntable bearing can be used for port machinery, mining machinery, welding machinery, construction vehicles, modular vehicles, single or dual axis solar tracking systems, and small wind power systems etc.

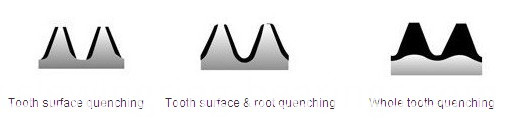

FAQ 1Turntable Bearing Heat Treatment Heat Gear Xuzhou Wanda company are in the majority of cases supplied with spur tooth. Stub teeth also is ok.There are two kinds of tooth hardening. They are normalizing and tempering, According to the different applications, there are two ways of quenching. They're whole tooth quenching and single-tooth quenching. Single-tooth quenching can be divided into tooth surface & root quenching and tooth surface quenching. 2The Calculation of turntable Bearing. Static load capacity The determined loads must be multiplied with a factor fstat allocated to the application. The product Fa' or Mk' must be below the static critical load curve of the selected bearing. With regard to radial loads in load combinations Fa = axial load
Fr = radial load
Mr = tilting moment 3 Protection Against Corrosion We make Protection Against Corrosion on surface of bearing,and make couple of packing paper. 4Customize. Yes,we have professional technical terms. 5.Warranty:

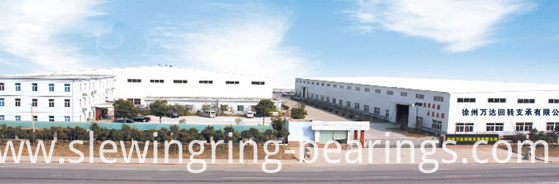

General 1 year. 6. Reliable reputation. Wanda turntable bearing delivers custom-engineered solutions to customers in 34 countries. We can send you a reference list. Company Information Wanda Slewing Bearing Co.,Ltd. is a professional manufacturer and exporter of turntable bearing,slewing drives. Turntable bearing can bear tilting moment,axial force,radial force.The diameter range of slewng bearing can be from 200 mm to 4500 mm.
For others our main products Slewing Drive, there are nine (9) different sizes available from 3" to 25" with more than 60 models to meet both regular and precise tracking requirements in PV, CPV and solar thermal power tracking fields.For detailed information pls download our catalogue. Wanda delivers custom-engineered solutions to customers in 34 countries.Our manufacturing standard is according to machinery standard JB/T2300-2011, we also has been found the efficient Quality Management Systems(QMS) of ISO 9001:2008 and GB/T19001-2008. We devote ourselves to the R &D of customized slewing bearing with high precision,special purpose and requirements. Contact us if you need more details on Turntable Bearing. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Turntable Bearing for Ferris Wheel、Turntable Bearing. If these products fail to match your need, please contact us and we would like to provide relevant information.
Model NO.: NJ The Number of Rows: Single Material: Bearing Steel Load Direction: Radial Bearing Structure Type: Cylindrical Roller Bearing Vibration: V1 V2 V3 V4 Service: OEM ODM Lubrication: Oil Lubrication Certification: ISO9001:2008 Trademark: HENGLI, LZ Specification: 1.45 Kg HS Code: 84825000 Rolling Body: Roller...
Model NO.: NJ244EM The Number of Rows: Single Material: Bearing Steel Load Direction: Radial Bearing Structure Type: Cylindrical Roller Bearing Vibration: V1 V2 V3 V4 Service: OEM ODM Lubrication: Oil Lubrication Application: Agriculture Trademark: HENGLI, LZ Specification: 40*80*18 mm HS Code: 84825000 Rolling Body: Roller...
Product Categories : Single Row Ball Slewing Bearing
