Light Type Turntable Bearing Cheap Slewing ring bearing and Crane Slewing bearing RK6-25P1Z
Basic Info
Model No.: RK6-25P1Z
Product Description
Company information Wanda Slewing Bearing Co.,Ltd. is a professional manufacturer and exporter of slewing bearing,slewing drives. XUZHOU Wanda Slewing Bearing CO.,LTD. is the leading manufacturer of slewing bearings (200~4500MM).
Wanda slewing bearing can do the seamless slewing bearing.Furthermore,WANDA SLEWING BEARING CO.,LTD. is a well-known manufacturer of Slewing Drive from 3" to 25". Wanda delivers custom-engineered solutions to customers in 34 countries,especially in the Europe and USA market. Our manufacturing standard is according to machinery standard JB/T2300-2011, we also has been found the efficient Quality Management Systems(QMS) of ISO 9001:2008 and GB/T19001-2008. We devote ourselves to the R &D of customized slewing bearing with high precision,special purpose and requirements.

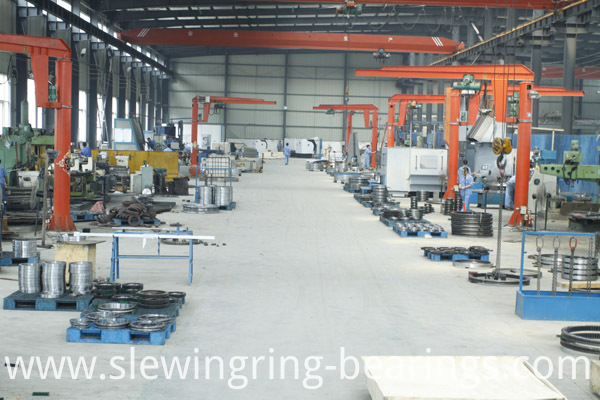

We have onselves plant located in 3rd Industrial Park Tongshan Economic Zone Xuzhou,Jiangsu,China.
There are many advanced equipments,our capacity 30000/year.
Product Description Turntable Bearing manufacturer in China Leading of Light type turntable bearing manufacturer Cheap Slewing Ring Bearing and high quality Crane Slewing Bearing
Light Type Turntable Bearing RK6-25P1Z(my model is 230.20.0644) Crane slewing bearing datas: α:20°
xm:0
km:0
Spanned tooth no.:17
length and clearance of Common Normal:0.16
Radial backlash:0.06~0.30
Roller:GCr15
Retauber:Nylon
Oil nipple:M10×1
Axial backlash:0.06~0.300
Mounting hole:as your requirement Especially in the Europe and USA market. Clearance range 0~0.20mm
Tolerance range 0.15~0.85mm
Runout <0.3mm
Teeth Precision GB10095-88
Teeth pressure angle 20°
Modification coefficients0.5 Raceway of inner &outer ring induction hardened.
depth:≥3.0mm
Hardness:55~62HRC Wanda Turntable Bearing Co.,Ltd. is a professional manufacturer and exporter of turntable bearing.
The Light Type Turntable Bearing has the same structure with the ordinary Slewing Ring Bearing,but the weight is lighter, and rotates flexibly,which widely used in the food machinery,canning machinery and environmental machinery etc. Three types of this kind of turntable bearing: A. Without Gear turntable bearing B. External Gear turntable bearing
C. Internal Gear turntable bearing Wanda turntable bearing product Series:
1. Single-row Four-point Contact turntable bearing
2. Single-row Crossed Roller turntable bearing
3. Double-row Four-point Contact turntable bearing
4. Three-row Roller turntable Bearing

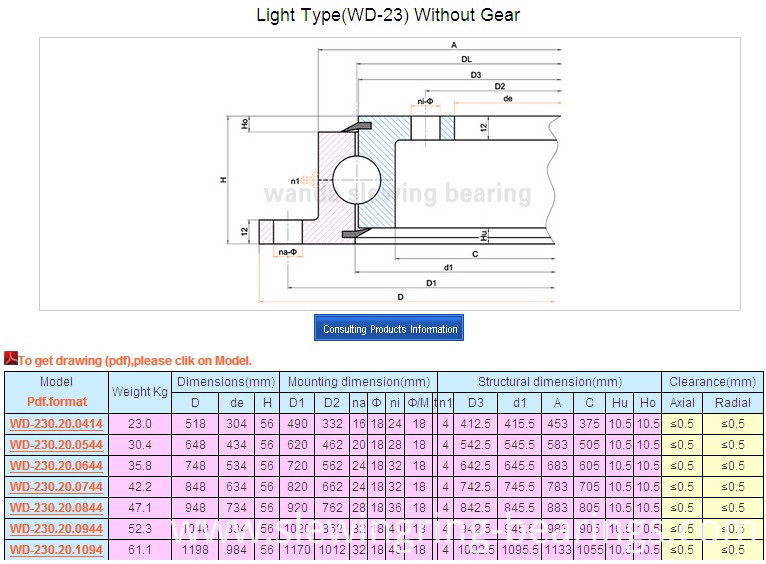

5. Light type turntable bearing 230 series turtable bearing as below:

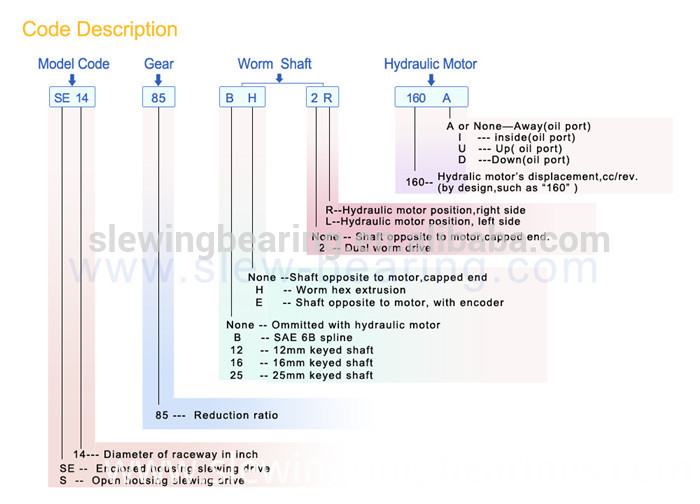

SE Slewing drive Slewing drive code description:

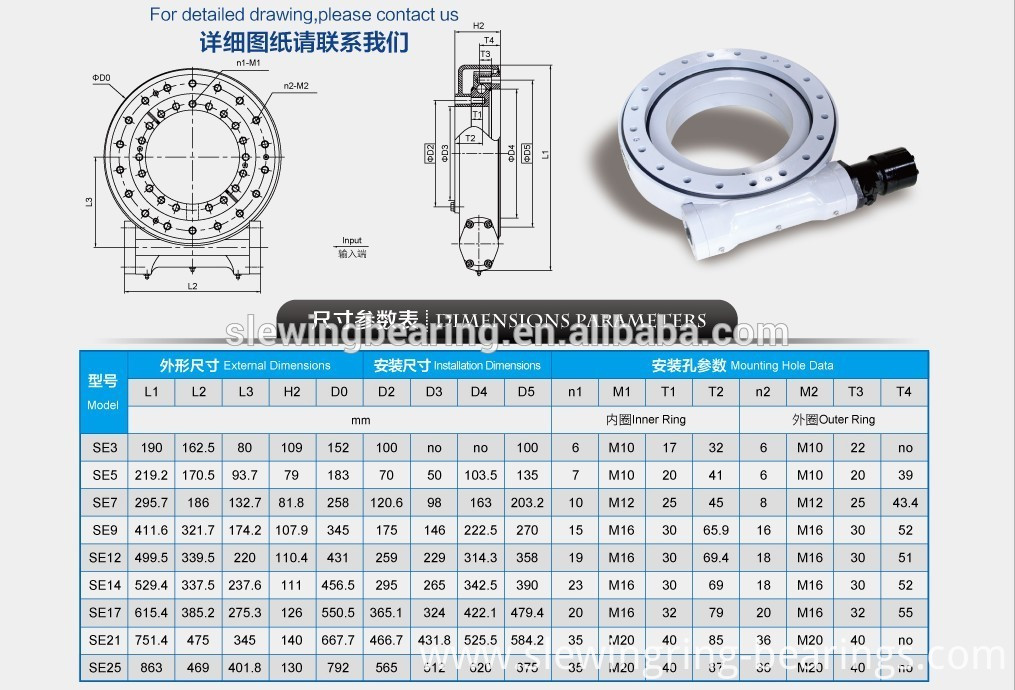

Wanda SE series Slewing drive(SE3,SE5,SE7,SE12,SE14,SE17,SE21,SE25)

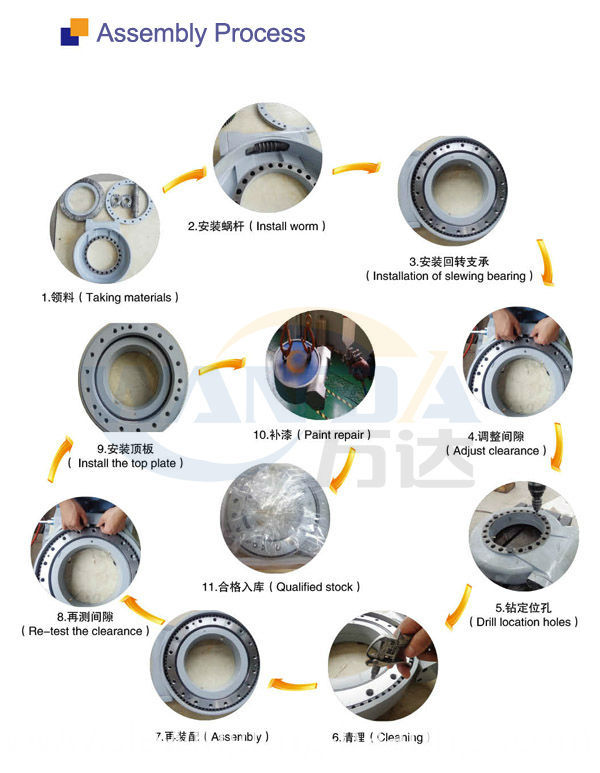

Assemble process:
Our Advantages 1.Fast delivery
2.Good quality and competitive price
3.Trial order accepted
4.ISO certified company
5.OEM
6. Custom-design is available.( non-standard model)
7. We can do replacement turntable bearing for differenct type like Rothe Erde,Rollix,INA,SKF,IMO,TG,Kaydon etc.
Packaging & Shipping 1:Filling with rust-proof oil
2:packing with protective layers
3:Fixed in the plywood Delivery type:by sea,by air
Wanda Turntable Bearing Co.,Ltd. have many full experiences on ligh type turntable bearing. If you need more information about productions or others,pls feel free to contact me,jenny(at)slew-bearing(doc)com. Certifications
Contact
Contact us if you need more details on Turntable Bearing. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Cheap Slewing Ring Bearing、Crane Slewing Bearing. If these products fail to match your need, please contact us and we would like to provide relevant information.
Wanda slewing bearing can do the seamless slewing bearing.Furthermore,WANDA SLEWING BEARING CO.,LTD. is a well-known manufacturer of Slewing Drive from 3" to 25". Wanda delivers custom-engineered solutions to customers in 34 countries,especially in the Europe and USA market. Our manufacturing standard is according to machinery standard JB/T2300-2011, we also has been found the efficient Quality Management Systems(QMS) of ISO 9001:2008 and GB/T19001-2008. We devote ourselves to the R &D of customized slewing bearing with high precision,special purpose and requirements.
We have onselves plant located in 3rd Industrial Park Tongshan Economic Zone Xuzhou,Jiangsu,China.


Light Type Turntable Bearing RK6-25P1Z(my model is 230.20.0644) Crane slewing bearing datas: α:20°
xm:0
km:0
Spanned tooth no.:17
length and clearance of Common Normal:0.16
Radial backlash:0.06~0.30
Roller:GCr15
Retauber:Nylon
Oil nipple:M10×1
Axial backlash:0.06~0.300
Mounting hole:as your requirement Especially in the Europe and USA market. Clearance range 0~0.20mm
Tolerance range 0.15~0.85mm
Runout <0.3mm
Teeth Precision GB10095-88
Teeth pressure angle 20°
Modification coefficients0.5 Raceway of inner &outer ring induction hardened.
depth:≥3.0mm
Hardness:55~62HRC Wanda Turntable Bearing Co.,Ltd. is a professional manufacturer and exporter of turntable bearing.
The Light Type Turntable Bearing has the same structure with the ordinary Slewing Ring Bearing,but the weight is lighter, and rotates flexibly,which widely used in the food machinery,canning machinery and environmental machinery etc. Three types of this kind of turntable bearing: A. Without Gear turntable bearing B. External Gear turntable bearing
C. Internal Gear turntable bearing Wanda turntable bearing product Series:
1. Single-row Four-point Contact turntable bearing
2. Single-row Crossed Roller turntable bearing
3. Double-row Four-point Contact turntable bearing
4. Three-row Roller turntable Bearing
5. Light type turntable bearing 230 series turtable bearing as below:




2.Good quality and competitive price
3.Trial order accepted
4.ISO certified company
5.OEM
6. Custom-design is available.( non-standard model)
7. We can do replacement turntable bearing for differenct type like Rothe Erde,Rollix,INA,SKF,IMO,TG,Kaydon etc.

2:packing with protective layers
3:Fixed in the plywood Delivery type:by sea,by air
